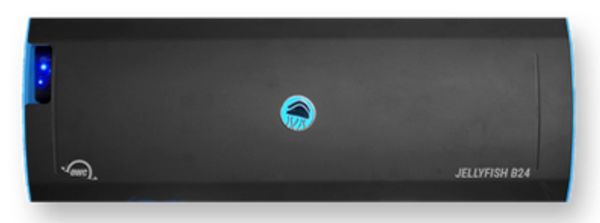

Jellyfish B24

The Jellyfish B24 is a slimmed-down version of the powerful Jellyfish R24, designed as a nearline backup to ensure that your media are always safe and still easily accessible in case anything happens to your online system.

The Jellyfish B24 can also be used as a cost-effective collaboration solution for smaller teams using workflows that don’t need high throughput but require large storage capacities.

B24 Base Model Capacities:

144TB RAW - 97TB RAIDZ2

288TB RAW - 194TB RAIDZ2

576TB RAW - 372TB RAIDZ2

Physical

Rack: 4U

Bays: 24-bay SATA HDD

HxDxW: 17.8 x 71.1 x 48.2 cm

Weight: 40,8 kg

Power: 875W redundant PSU

Noise: 71 dB under load

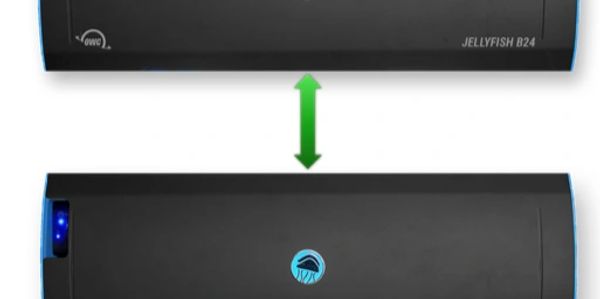

Add Jellyfish B24-E expansion units anytime over the included 12G Mini-SAS HD port.

Up to 4x Expansion units permissible.

Expanding capacity with same size storage as the head unit, one volume is created and automatically includes your existing media.

Multiple shares, if required, are admin user created.

Max capacity = 2.88 PB RAW - 1.86 PB RAIDZ2

Configuration:

1x B24 576TB Head Unit

+ 4x B24E Expansion Units.
